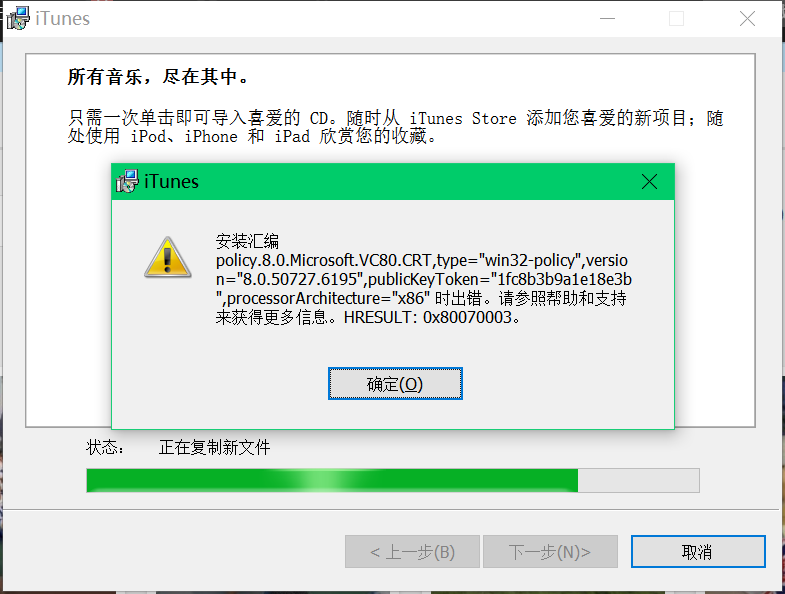

Hresult 0x80070003

Posted onby
-->
  1. Most values also have a default message defined, which can be used to map the value to a human-readable text message; when this is done, the HRESULT value is also known as a message identifier. Note: In the following descriptions, a percentage sign (%) followed by one or more alphanumeric characters (for example, '%1' or '%hs') indicates a.
  2. Hi, when try w3ith this code to access the remote computer Dim options As ConnectionOptions = New ConnectionOptions options.Username = 'shambhuremote' options.Password.
  3. Computer help, trying to install a programme that writes to or installs any of the Microsoft Visual C redistributable packages causing error 1935.This solu.

This topic lists the HRESULT return codes that are defined for DirectShow. Note that DirectShow APIs can return other HRESULT values not shown here. For additional HRESULT values, see COM Error Codes.

Hresult 0x80070003

The following table contains DirectShow-specific error and success codes in numerical order. Return codes beginning with VFW_S_ indicate success. An operation might partially succeed and still have a successful return value. For example, VFW_S_SOME_DATA_IGNORED indicates that a file was rendered by ignoring some of its property settings. Return codes beginning with VFW_E_ indicate an error.

These values are defined in the header file Vfwmsgs.h.

Constant/valueDescription
VFW_S_NO_MORE_ITEMS
0x00040103
Reached the end of the list; no more items in the list. (Filter developers: The CBasePin::GetMediaType method is expected to return this value.)
VFW_S_DUPLICATE_NAME
0x0004022D
An attempt to add a filter with a duplicate name succeeded with a modified name.
VFW_S_STATE_INTERMEDIATE
0x00040237
The state transition is not complete.
VFW_S_PARTIAL_RENDER
0x00040242
Some of the streams are in an unsupported format.
VFW_S_SOME_DATA_IGNORED
0x00040245
The file contained some property settings that were not used.
VFW_S_CONNECTIONS_DEFERRED
0x00040246
Some connections failed and were deferred.
VFW_S_RESOURCE_NOT_NEEDED
0x00040250
The resource specified is no longer needed.
VFW_S_MEDIA_TYPE_IGNORED
0x00040254
A GraphEdit (.grf) file was loaded successfully, but at least two pins were connected using a different media type than the media type stored in the GraphEdit file.
VFW_S_VIDEO_NOT_RENDERED
0x00040257
Cannot play back the video stream: could not find a suitable renderer.
VFW_S_AUDIO_NOT_RENDERED
0x00040258
Cannot play back the audio stream: could not find a suitable renderer.
VFW_S_RPZA
0x0004025A
Cannot play back the video stream: format 'RPZA' is not supported.
VFW_S_ESTIMATED
0x00040260
The value returned had to be estimated. Its accuracy can't be guaranteed.
VFW_S_RESERVED
0x00040263
This success code is reserved for internal purposes within DirectShow.
VFW_S_STREAM_OFF
0x00040267
The stream was turned off.
VFW_S_CANT_CUE
0x00040268
The filter is active, but cannot deliver data. See IMediaFilter::GetState.
VFW_S_NOPREVIEWPIN
0x0004027E
Preview was rendered throught the Smart Tee filter, because the capture filter does not have a preview pin.
VFW_S_DVD_NON_ONE_SEQUENTIAL
0x00040280
The current title is not a sequential set of chapters (PGC), so the timing information might not be continuous.
VFW_S_DVD_CHANNEL_CONTENTS_NOT_AVAILABLE
0x0004028C
The audio stream does not contain enough information to determine the contents of each channel.
VFW_S_DVD_NOT_ACCURATE
0x0004028D
The seek operation on the DVD was not frame accurate.
VFW_E_INVALIDMEDIATYPE
0x80040200
The specified media type is invalid.
VFW_E_INVALIDSUBTYPE
0x80040201
The specified media subtype is invalid.
VFW_E_NEED_OWNER
0x80040202
This object can only be created as an aggregated object.
VFW_E_ENUM_OUT_OF_SYNC
0x80040203
The state of the enumerated object has changed and is now inconsistent with the state of the enumerator. Discard any data obtained from previous calls to the enumerator and then update the enumerator by calling the enumerator's Reset method.
VFW_E_ALREADY_CONNECTED
0x80040204
At least one of the pins involved in the operation is already connected.
VFW_E_FILTER_ACTIVE
0x80040205
This operation cannot be performed because the filter is active.
VFW_E_NO_TYPES
0x80040206
One of the specified pins supports no media types.
VFW_E_NO_ACCEPTABLE_TYPES
0x80040207
There is no common media type between these pins.
VFW_E_INVALID_DIRECTION
0x80040208
Two pins of the same direction cannot be connected.
VFW_E_NOT_CONNECTED
0x80040209
The operation cannot be performed because the pins are not connected.
VFW_E_NO_ALLOCATOR
0x8004020A
No sample buffer allocator is available.
VFW_E_RUNTIME_ERROR
0x8004020B
A run-time error occurred.
VFW_E_BUFFER_NOTSET
0x8004020C
No buffer space has been set.
VFW_E_BUFFER_OVERFLOW
0x8004020D
The buffer is not big enough.
VFW_E_BADALIGN
0x8004020E
An invalid alignment was specified.
VFW_E_ALREADY_COMMITTED
0x8004020F
The allocator was not committed. See IMemAllocator::Commit.
VFW_E_BUFFERS_OUTSTANDING
0x80040210
One or more buffers are still active.
VFW_E_NOT_COMMITTED
0x80040211
Cannot allocate a sample when the allocator is not active.
VFW_E_SIZENOTSET
0x80040212
Cannot allocate memory because no size has been set.
VFW_E_NO_CLOCK
0x80040213
Cannot lock for synchronization because no clock has been defined.
VFW_E_NO_SINK
0x80040214
Quality messages could not be sent because no quality sink has been defined.
VFW_E_NO_INTERFACE
0x80040215
A required interface has not been implemented.
VFW_E_NOT_FOUND
0x80040216
An object or name was not found.
VFW_E_CANNOT_CONNECT
0x80040217
No combination of intermediate filters could be found to make the connection.
VFW_E_CANNOT_RENDER
0x80040218
No combination of filters could be found to render the stream.
VFW_E_CHANGING_FORMAT
0x80040219
Could not change formats dynamically.
VFW_E_NO_COLOR_KEY_SET
0x8004021A
No color key has been set.
VFW_E_NOT_OVERLAY_CONNECTION
0x8004021B
Current pin connection is not using the IOverlay transport.
VFW_E_NOT_SAMPLE_CONNECTION
0x8004021C
Current pin connection is not using the IMemInputPin transport.
VFW_E_PALETTE_SET
0x8004021D
Setting a color key would conflict with the palette already set.
VFW_E_COLOR_KEY_SET
0x8004021E
Setting a palette would conflict with the color key already set.
VFW_E_NO_COLOR_KEY_FOUND
0x8004021F
No matching color key is available.
VFW_E_NO_PALETTE_AVAILABLE
0x80040220
No palette is available.
VFW_E_NO_DISPLAY_PALETTE
0x80040221
Display does not use a palette.
VFW_E_TOO_MANY_COLORS
0x80040222
Too many colors for the current display settings.
VFW_E_STATE_CHANGED
0x80040223
The state changed while waiting to process the sample.
VFW_E_NOT_STOPPED
0x80040224
The operation could not be performed because the filter is not stopped.
VFW_E_NOT_PAUSED
0x80040225
The operation could not be performed because the filter is not paused.
VFW_E_NOT_RUNNING
0x80040226
The operation could not be performed because the filter is not running.
VFW_E_WRONG_STATE
0x80040227
The operation could not be performed because the filter is in the wrong state.
VFW_E_START_TIME_AFTER_END
0x80040228
The sample start time is after the sample end time.
VFW_E_INVALID_RECT
0x80040229
The supplied rectangle is invalid.
VFW_E_TYPE_NOT_ACCEPTED
0x8004022A
This pin cannot use the supplied media type.
VFW_E_SAMPLE_REJECTED
0x8004022B
This sample cannot be rendered.
VFW_E_SAMPLE_REJECTED_EOS
0x8004022C
This sample cannot be rendered because the end of the stream has been reached.
VFW_E_DUPLICATE_NAME
0x8004022D
An attempt to add a filter with a duplicate name failed.
VFW_E_TIMEOUT
0x8004022E
A time-out has expired.
VFW_E_INVALID_FILE_FORMAT
0x8004022F
The file format is invalid.
VFW_E_ENUM_OUT_OF_RANGE
0x80040230
The list has already been exhausted.
VFW_E_CIRCULAR_GRAPH
0x80040231
The filter graph is circular.
VFW_E_NOT_ALLOWED_TO_SAVE
0x80040232
Updates are not allowed in this state.
VFW_E_TIME_ALREADY_PASSED
0x80040233
An attempt was made to queue a command for a time in the past.
VFW_E_ALREADY_CANCELLED
0x80040234
The queued command was already canceled.
VFW_E_CORRUPT_GRAPH_FILE
0x80040235
Cannot render the file because it is corrupt.
VFW_E_ADVISE_ALREADY_SET
0x80040236
An IOverlay advise link already exists.
VFW_E_NO_MODEX_AVAILABLE
0x80040238
No full-screen modes are available.
VFW_E_NO_ADVISE_SET
0x80040239
This advise cannot be canceled because it was not successfully set.
VFW_E_NO_FULLSCREEN
0x8004023A
Full-screen mode is not available.
VFW_E_IN_FULLSCREEN_MODE
0x8004023B
Cannot call IVideoWindow methods while in full-screen mode.
VFW_E_UNKNOWN_FILE_TYPE
0x80040240
The media type of this file is not recognized.
VFW_E_CANNOT_LOAD_SOURCE_FILTER
0x80040241
The source filter for this file could not be loaded.
VFW_E_FILE_TOO_SHORT
0x80040243
A file appeared to be incomplete.
VFW_E_INVALID_FILE_VERSION
0x80040244
The file's version number is invalid.
VFW_E_INVALID_CLSID
0x80040247
This file is corrupt: it contains an invalid class identifier.
VFW_E_INVALID_MEDIA_TYPE
0x80040248
This file is corrupt: it contains an invalid media type.
VFW_E_SAMPLE_TIME_NOT_SET
0x80040249
No time stamp has been set for this sample.
VFW_E_MEDIA_TIME_NOT_SET
0x80040251
No media time was set for this sample.
VFW_E_NO_TIME_FORMAT_SET
0x80040252
No media time format was selected.
VFW_E_MONO_AUDIO_HW
0x80040253
Cannot change balance because audio device is monoaural only.
VFW_E_NO_DECOMPRESSOR
0x80040255
Cannot play back the video stream: could not find a suitable decompressor.
VFW_E_NO_AUDIO_HARDWARE
0x80040256
Cannot play back the audio stream: no audio hardware is available, or the hardware is not supported.
VFW_E_RPZA
0x80040259
Cannot play back the video stream: format 'RPZA' is not supported.
VFW_E_PROCESSOR_NOT_SUITABLE
0x8004025B
DirectShow cannot play MPEG movies on this processor.
VFW_E_UNSUPPORTED_AUDIO
0x8004025C
Cannot play back the audio stream: the audio format is not supported.
VFW_E_UNSUPPORTED_VIDEO
0x8004025D
Cannot play back the video stream: the video format is not supported.
VFW_E_MPEG_NOT_CONSTRAINED
0x8004025E
DirectShow cannot play this video stream because it falls outside the constrained standard.
VFW_E_NOT_IN_GRAPH
0x8004025F
Cannot perform the requested function on an object that is not in the filter graph.
VFW_E_NO_TIME_FORMAT
0x80040261
Cannot access the time format on an object.
VFW_E_READ_ONLY
0x80040262
Could not make the connection because the stream is read-only and the filter alters the data.
VFW_E_BUFFER_UNDERFLOW
0x80040264
The buffer is not full enough.
VFW_E_UNSUPPORTED_STREAM
0x80040265
Cannot play back the file: the format is not supported.
VFW_E_NO_TRANSPORT
0x80040266
Pins cannot connect because they don't support the same transport.
For example, the upstream filter might require the IAsyncReader interface, while the downstream filter requires IMemInputPin.
VFW_E_BAD_VIDEOCD
0x80040269
The Video CD can't be read correctly by the device or the data is corrupt.
VFW_S_NO_STOP_TIME
0x80040270
The sample had a start time but not a stop time. In this case, the stop time that is returned is set to the start time plus one.
VFW_E_OUT_OF_VIDEO_MEMORY
0x80040271
There is not enough video memory at this display resolution and number of colors. Reducing resolution might help.
VFW_E_VP_NEGOTIATION_FAILED
0x80040272
The video port connection negotiation process has failed.
VFW_E_DDRAW_CAPS_NOT_SUITABLE
0x80040273
Either DirectDraw has not been installed or the video card capabilities are not suitable. Make sure the display is not in 16-color mode.
VFW_E_NO_VP_HARDWARE
0x80040274
No video port hardware is available, or the hardware is not responding.
VFW_E_NO_CAPTURE_HARDWARE
0x80040275
No capture hardware is available, or the hardware is not responding.
VFW_E_DVD_OPERATION_INHIBITED
0x80040276
This user operation is prohibited by DVD content at this time.
VFW_E_DVD_INVALIDDOMAIN
0x80040277
This operation is not permitted in the current domain.
VFW_E_DVD_NO_BUTTON
0x80040278
Requested button is not available.
VFW_E_DVD_GRAPHNOTREADY
0x80040279
DVD-Video playback graph has not been built yet.
VFW_E_DVD_RENDERFAIL
0x8004027A
DVD-Video playback graph building failed.
VFW_E_DVD_DECNOTENOUGH
0x8004027B
DVD-Video playback graph could not be built due to insufficient decoders.
VFW_E_DDRAW_VERSION_NOT_SUITABLE
0x8004027C
The DirectDraw version number is not suitable. Make sure to install DirectX 5 or higher.
VFW_E_COPYPROT_FAILED
0x8004027D
Copy protection could not be enabled.
VFW_E_TIME_EXPIRED
0x8004027F
Seek command timed out.
VFW_E_DVD_WRONG_SPEED
0x80040281
The operation cannot be performed at the current playback speed.
VFW_E_DVD_MENU_DOES_NOT_EXIST
0x80040282
The specified DVD menu does not exist.
VFW_E_DVD_CMD_CANCELLED
0x80040283
The specified command was canceled or no longer exists.
VFW_E_DVD_STATE_WRONG_VERSION
0x80040284
The DVD state information contains the wrong version number.
VFW_E_DVD_STATE_CORRUPT
0x80040285
The DVD state information is corrupted.
VFW_E_DVD_STATE_WRONG_DISC
0x80040286
The DVD state information is from another disc and not the current disc.
VFW_E_DVD_INCOMPATIBLE_REGION
0x80040287
The region is not compatible with the drive.
VFW_E_DVD_NO_ATTRIBUTES
0x80040288
The requested attributes do not exist.
VFW_E_DVD_NO_GOUP_PGC
0x80040289
The operation cannot be performed because no GoUp program chain (PGC) is available.
VFW_E_DVD_LOW_PARENTAL_LEVEL
0x8004028A
The operation is prohibited because the parental level is too low.
VFW_E_DVD_NOT_IN_KARAOKE_MODE
0x8004028B
The DVD Navigator is not in karaoke mode.
VFW_E_FRAME_STEP_UNSUPPORTED
0x8004028E
Frame stepping is not supported.
VFW_E_DVD_STREAM_DISABLED
0x8004028F
The requested stream is disabled.
VFW_E_DVD_TITLE_UNKNOWN
0x80040290
The operation requires a title number, but there is no current title. This error can occur when the DVD Navigator is not in the Title domain or the Video Title Set Menu (VTSM) domain.
VFW_E_DVD_INVALID_DISC
0x80040291
The specified path is not a valid DVD disc.
VFW_E_DVD_NO_RESUME_INFORMATION
0x80040292
The Resume operation could not be completed, because there is no resume information.
VFW_E_PIN_ALREADY_BLOCKED_ON_THIS_THREAD
0x80040293
Pin is already blocked on the calling thread.
VFW_E_PIN_ALREADY_BLOCKED
0x80040294
Pin is already blocked on another thread.
VFW_E_CERTIFICATION_FAILURE
0x80040295
Use of this filter is restricted by a software key. The application must unlock the filter.
VFW_E_VMR_NOT_IN_MIXER_MODE
0x80040296
The Video Mixing Renderer (VMR) is not in mixing mode. Call IVMRFilterConfig::SetNumberOfStreams (VMR-7) or IVMRFilterConfig9::SetNumberOfStreams (VMR-9).
VFW_E_VMR_NO_AP_SUPPLIED
0x80040297
The application has not yet provided the VMR filter with a valid allocator-presenter object.
VFW_E_VMR_NO_DEINTERLACE_HW
0x80040298
The VMR could not find any de-interlacing hardware on the current display device.
VFW_E_VMR_NO_PROCAMP_HW
0x80040299
The VMR could not find any hardware that supports ProcAmp controls on the current display device.
VFW_E_DVD_VMR9_INCOMPATIBLEDEC
0x8004029A
The hardware decoder uses video port extensions (VPE), which are not compatible with the VMR-9 filter.
VFW_E_NO_COPP_HW
0x8004029B
The current display device does not support Content Output Protection Protocol (COPP); or the VMR has not connected to a display device yet.
VFW_E_BAD_KEY
0x800403F2
A registry entry is corrupt.
VFW_E_DVD_NONBLOCKING
0x8004029C
The DVD navigator cannot complete the requested operation, because another operation is still pending.
VFW_E_DVD_TOO_MANY_RENDERERS_IN_FILTER_GRAPH
0x8004029D
The DVD Navigator cannot build the DVD playback graph because the graph contains more than one video renderer.
VFW_E_DVD_NON_EVR_RENDERER_IN_FILTER_GRAPH
0x8004029E
The DVD Navigator cannot add the Enhanced Video Renderer (EVR) filter to the filter graph because the graph already contains a video renderer.
VFW_E_DVD_RESOLUTION_ERROR
0x8004029F
DVD Video output is not at a proper resolution.
VFW_E_CODECAPI_LINEAR_RANGE
0x80040310
The specified codec parameter has a linear range, not an enumerated list.
VFW_E_CODECAPI_ENUMERATED
0x80040311
The specified codec parameter has an enumerated range of values, not a linear range.
VFW_E_CODECAPI_NO_DEFAULT
0x80040313
The specified codec parameter does not have a default value.
VFW_E_CODECAPI_NO_CURRENT_VALUE
0x80040314
The specified codec parameter does not have a current value.
E_PROP_ID_UNSUPPORTED
0x80070490
The specified property identifier is not supported.
E_PROP_SET_UNSUPPORTED
0x80070492
The specified property set is not supported.

This topic lists the HRESULT return codes that are defined for DirectShow. Note that DirectShow APIs can return other HRESULT values not shown here.

In addition to the values listed previously, DirectShow Editing Services defines the following HRESULT values.

Constant/valueDescription
S_WARN_OUTPUTRESET
0x00009DD4
The rendering portion of the graph was deleted. The application must rebuild it.
E_NOTINTREE
0x80040400
The object is not contained in the timeline.
E_RENDER_ENGINE_IS_BROKEN
0x80040401
Operation failed because project was not rendered successfully.
E_MUST_INIT_RENDERER
0x80040402
Render engine has not been initialized.
E_NOTDETERMINED
0x80040403
Cannot determine requested value.
E_NO_TIMELINE
0x80040404
There is no timeline object.

Exception From Hresult: 0x80070003

Requirements

Header
Vfwmsgs.h
Hresult 0x80070003

See also

Recently one of the user reported an issue related to SCCM boot image distribution error 0x80070003. He tried distributing the boot images to PXE enabled distribution point but it failed. The distribution point server had many drive partitions and there were no errors while installing DP role. Below listed is some information about the issue and fix for it.

The user tried following steps to get fix this issue.

  • Deleted all the content off the distribution point.
  • Removed the distribution point role.
  • Uninstalled WDS service on server.
  • Place a no_sms_on_drive.sms on a secondary drive that previously contained some DP files in the server so that all DP files were on one drive.
  • Restarted Server.
  • Created the DP in SCCM console.

However the above steps didn’t work. The boot image distribution still failed. When the distribution point role was reinstalled the same issue came up. Looking at the distmgr.log file revealed the following.

Exception from hresult: 0x80070003

Hresult 0x80070003 - Error_path_not_found

Hresult file not found

Successfully created directory serverSMSPKGM$P0100002 for package P0100002.
user(NT AUTHORITYSYSTEM) running application(SMS_DISTRIBUTION_MANAGER)
?M:SMSPKGSIGP0100002.20 could not be located
Failed to get RDC signature path for for package P0100002 version 20. Error = 2
Copying package P0100002 to the package share location SMSPKGM$P0100002 on the server
CContentDefinition::ExpandContentDefinitionItems failed; 0x80070003
CContentDefinition::Expand failed; 0x80070003
Failed to expand package P0100002 to ?M:SMSPKGM$P0100002.E
Error code = 0x80070003
Error occurred. Performing error cleanup prior to returning.
All DP threads have completed for package P0100002 processing thread.

Exception From Hresult 0x80070003

SCCM Boot Image Distribution Error 0x80070003 Resolution

Hresult 0x800700c1

It is true that copying a boot image to a PXE enabled Distribution Point in SCCM fails if a NO_SMS_ON_DRIVE.SMS file is placed on the same partition on which the Content Library is located. Deleting the NO_SMS_ON_DRIVE.SMS file from the drive fixed the issue.

Hresult Codes

What is NO_SMS_ON_DRIVE.SMS file ? – This file prevents Configuration Manager from installing files on specific drive. Just create an empty file named NO_SMS_ON_DRIVE.SMS. Place it on drive and SCCM won’t install the binaries for the configuration manager components.
